PowerVN4-AHDM

Connecting cameras standard AHDM


PowerVN4-AHDM is used to connect to the VideoNet software of  standard AHDM. A video/audio capture board is a device which contains one or more digitization devices and installed in PCI Express x1/x4/x8/x16 slot of the computer.

VideoNet system version 8.9 SP3 and newer systems supports the PowerVN4 - AHDM video/audio capture board.





Use



PowerVN4-AHDM – electronic module that is running the computer system VideoNet® and designed to:

  • receiving video signals from the digital high-definition cameras with analog signal transmission (AHDM) and the subsequent processing of video signals in the environment VideoNet®;
  • receiving the audio signal, its digitization and processing in the environment VideoNet®.

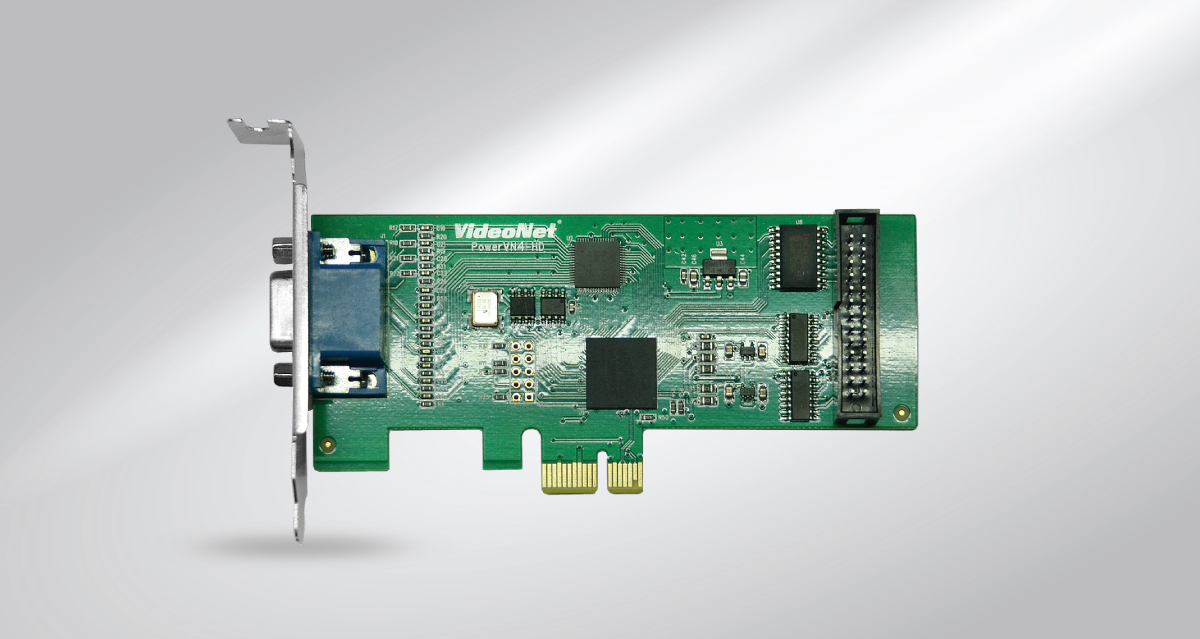

Appearance

Видеобластер PowerVN4-HD

Specifications



Specifications

PowerVN4-AHDM

Number of connected cameras

4

Number of line audio inputs

4 (8bit/8KHz)

Maximum flow rate

100 fps

Standard supplied video

analog system high-definition AHDM (1280x720)

Motherboard slot

PCI Express x1

Work on x64 operating system

Yes

Overall dimensions

120x100x25 mm

Module weight

90

Ambient temperature

+5... +50°C

Relative humidity conditions for normal working (at +20°C) no more than

80 %



Download the documentation for your device
