PowerVN8-HD
Connection of analog cameras and cameras of the standard 960H
PowerVN8-HD is used to connect to the VideoNet software of analog cameras and 960h cameras. A video/audio capture board is a device which contains one or more digitization devices and installed in PCI Express x1/x4/x8/x16 slot of the computer.
VideoNet system version 8.9 SP3 and newer systems supports the PowerVN8-HD video/audio capture board.
Use
PowerVN8-HD – electronic module that is running the computer system VideoNet® and designed to:
- receiving video signals from television cameras or other devices, including devices based on the Sony Effio chip, and their subsequent digitization and processing in the environment VideoNet®;
- receiving the audio signal, its digitization and processing in the environment VideoNet®.
- condition monitoring sensors (using the module MB-RIO 4/16);
- control relay outputs (using the MB-RIO 4/16 module).

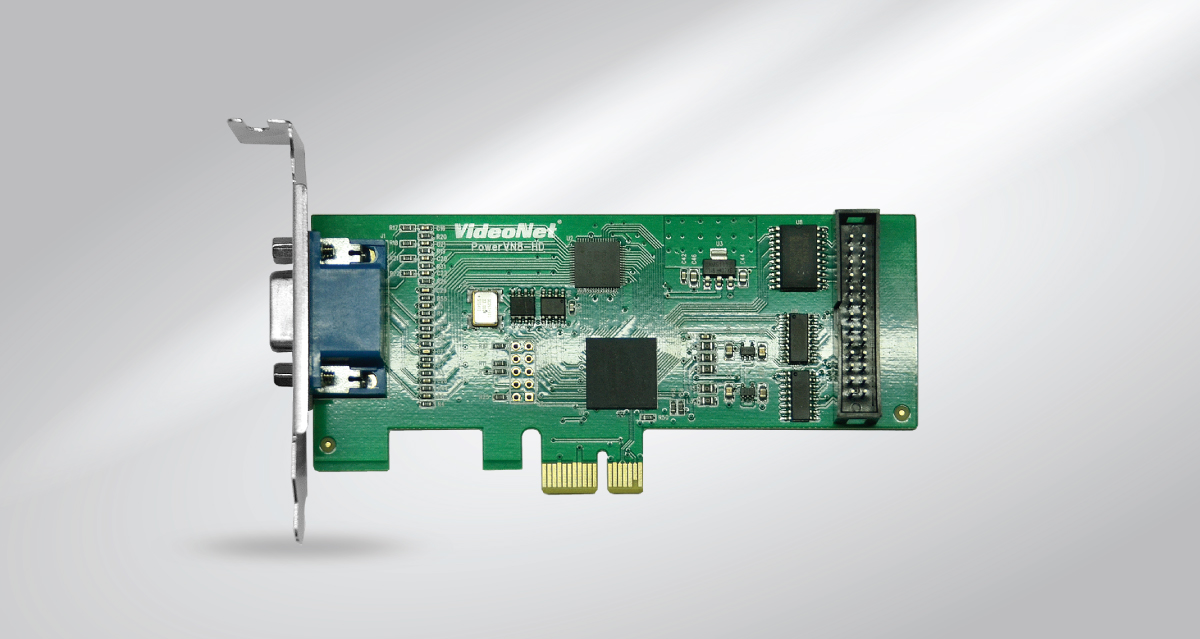

Appearance
Specifications
|
Specifications |
PowerVN8-HD |
|---|---|
|
Number of connected cameras |
8 |
|
Number of line audio inputs |
4 (8bit/8KHz) |
|
Maximum flow rate |
200 fps |
|
Standard supplied video |
960h (968х576) and the video broadcast standard of decomposition of a positive polarity scale 1V ± 0.2 V at 75 Ohms (GOST 7845-82) |
|
Motherboard slot |
PCI Express x1 |
|
Work on x64 operating system |
Yes |
|
Overall dimensions |
120x100x25 mm |
|
Module weight |
90 |
|
Ambient temperature |
+5... +50°C |
|
Relative humidity conditions for normal working (at +20°C) no more than |
80 % |
