Quest hardware

QUEST access control system hardware


VideoNet ACS with Quest controllers is an element of a comprehensive security system and an integral part of a modern enterprise or office. Allows you to differentiate the passage of visitors and employees to the premises of the enterprise.

When building ACS on the VideoNet security platform, you can use Quest network controllers that connect to the network via the RS-485 or Ethernet interface and support up to two readers with the Wiegand 26/34 or 1-Wire interface. Interfaces ensure compatibility of the ACS system with various types of identifiers: simple Touch Memory "tablets", proximity cards of EM-Marine, HID, Mifare standards and biometric data.

Quest ACS controllers can control various executive devices: electromagnetic and electromechanical locks, turnstiles, barriers and card receivers of all manufacturers represented on our market. Controllers work autonomously or as part of a shared network over Ethernet or RS-485.









Current models of Skyros manufactured controllers

Name


Description

Link to the manufacturer's website

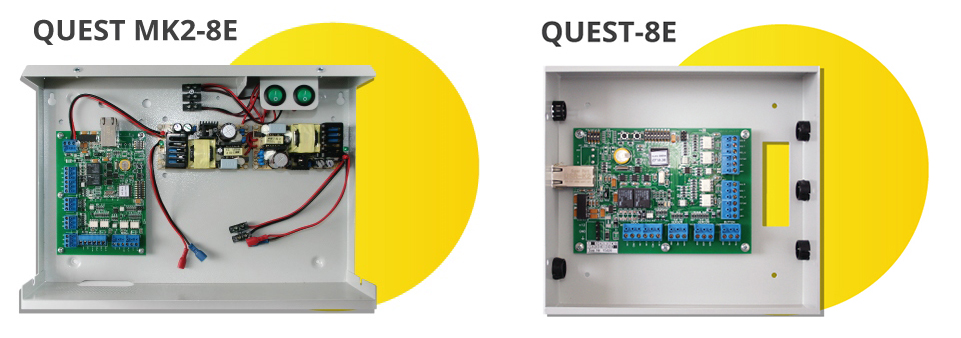

Quest-MK2-8E



Quest network controller with storage up to 8000 access cards and 8000 events.  Ethernet interface.  Modes:  one-door, two-door, turnstile.  Number of connected readers is 2 with Wiegand 26/34 or 1-Wire protocols.  In a metal case with two power supplies and the ability to install 2 4.5 A*H batteries.  Number of controlled relays is 2 with a maximum switching voltage of 30 VDC/3 A. Ambient temperature from +5 ° to +40°C

Quest-MK2-8E

Quest-MK2-8E APB



Quest network controller with storage up to 8000 access cards and 8000 events. Antipassback function  Ethernet interface.  Modes: one-door, two-door, turnstile. Number of connected readers is 2 with Wiegand 26/34 or 1-Wire protocols. In a metal case with two power supplies and the ability to install 2 4.5 A*H batteries:  7*10*12cm. Number of controlled relays is 2 with a maximum switching voltage of 30 VDC/3 A. Ambient temperature from +5 ° to +40°C

Quest-MK2-8E APB

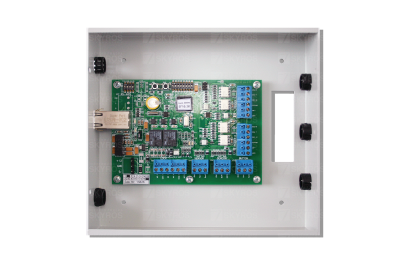

Quest-8E



Quest network controller with storage up to 8000 access cards and 8000 events. Ethernet interface. Modes: one-door, two-door, turnstile. Number of connected readers is 2 with Wiegand 26/34 or 1-Wire protocols.  Number of controlled relays is 2 with a maximum switching voltage of 30 VDC/3 A. Ambient temperature from +5 ° to +40°C

Quest-8E

Quest-8E APB



Quest network controller with storage up to 8000 access cards and 8000 events. Antipassback function  Ethernet interface. Modes: one-door, two-door, turnstile. Number of connected readers is 2 with Wiegand 26/34 or 1-Wire protocols. Number of controlled relays is 2 with a maximum switching voltage of 30 VDC/3 A. Ambient temperature from +5 ° to +40°C

Quest-8E APB

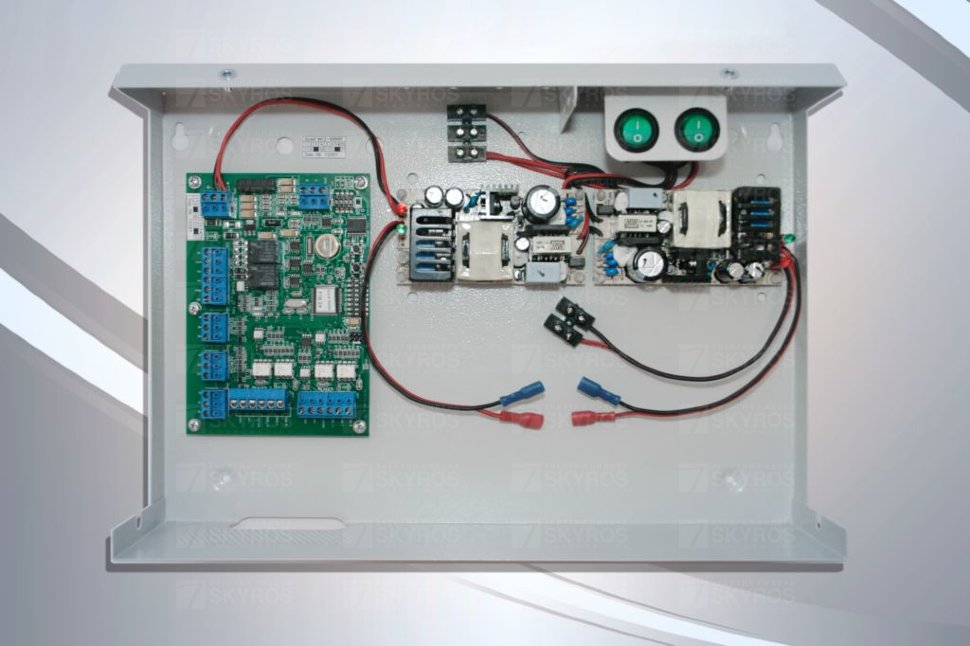

Quest-MK2-8000R



Quest network controller with storage up to 8000 access cards and 8000 events.  RS-485 connection interface.  Modes:  one-door, two-door, turnstile. Number of connected readers is 2 with Wiegand 26/34 or 1-Wire protocols.  In a metal case with two power supplies and the ability to install 2 4.5 A*H batteries: 7*10*12cm. Number of controlled relays is 2 with a maximum switching voltage of 30 VDC/3 A. Ambient temperature from +5 ° to +40°C

Quest-MK2-8000R

Quest-MK2-8000R APB



Quest network controller with storage up to 8000 access cards and 8000 events. Antipassback function  RS-485 connection interface. Modes:  one-door, two-door, turnstile. Number of connected readers is 2 with Wiegand 26/34 or 1-Wire protocols.  In a metal case with two power supplies and the ability to install 2 4.5 A*H batteries: 7*10*12cm. Number of controlled relays is 2 with a maximum switching voltage of 30 VDC/3 A. Ambient temperature from +5 ° to +40°C

Quest-MK2-8000R APB

Quest-8000 rev.3



Quest network controller with storage up to 8000 access cards and 8000 events. RS-485 connection interface. Modes:  one-door, two-door, turnstile. Number of connected readers is 2 with Wiegand 26/34 or 1-Wire protocols. Number of controlled relays is 2 with a maximum switching voltage of 30 VDC/3 A. Ambient temperature from +5 ° to +40°C

Quest-8000 rev.3

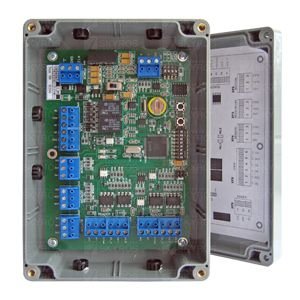

Quest-8000 APB rev.3



Quest network controller with storage up to 8000 access cards. Antipassback function RS-485 connection interface. Modes:  one-door, two-door, turnstile.  Number of connected readers is 2 with Wiegand 26/34 or 1-Wire protocols.  Number of controlled relays is 2 with a maximum switching voltage of 30 VDC/3 A. Ambient temperature from +5 ° to +40°C

Quest-8000 APB rev.3



Support for discontinued controllers

Name


Description

Status

Quest-1000 rev.3*



Touch Memory/proximity network controller for 1000 subscribers.

Discontinued

Quest-2000 rev.3*

Touch Memory/proximity network controller for 2000 subscribers.

Discontinued

Quest-4000 rev.3*



Touch Memory/proximity network controller for 4000 subscribers.

Discontinued

Quest-1000 APB rev.3*



Touch Memory/proximity network controller for 1000 subscribers. , Antipassback function

Discontinued

Quest-2000 APB rev.3*



Touch Memory/proximity network controller for 2000 subscribers. , Antipassback function

Discontinued

Quest-4000 APB rev.3*



Touch Memory/proximity network controller for 4000 subscribers. , Antipassback function

Discontinued

Quest-MK-1000 rev. 3*



Touch Memory/proximity network controller for 1000 subscribers. , in a case with a tamper and 2 power supplies

Discontinued

Quest-MK-2000 rev.3*



Touch Memory/proximity network controller for 2000 subscribers. , in a case with a tamper and 2 power supplies

Discontinued

Quest-MK-4000 rev.3*



Touch Memory/proximity network controller for 4000 subscribers. , Antipassback function, in a case with a tamper and 2 power supplies

Discontinued

Quest-MK-1000APB rev.3*



Touch Memory/proximity network controller for 1000 subscribers. , in a case with a tamper and 2 power supplies, Antipassback function

Discontinued

Quest-MK-2000APB rev.3*



Touch Memory/proximity network controller for 2000 subscribers. , in a case with a tamper and 2 power supplies, Antipassback function

Discontinued

Quest-MK-4000APB rev.3*



Touch Memory/proximity network controller for 4000 subscribers. , Antipassback function , in a case with a tamper and 2 power supplies

Discontinued

* Controllers of older revisions are also supported: 1.2, 1.3.
