Suppurted motherboards

List of supported motherboards


For reliable and seamless system operation we recommend to use the computer hardware listed below.

Single-processor motherboards



Name


Description

Compatible capture cards

Quantity

Asustek
Asustek

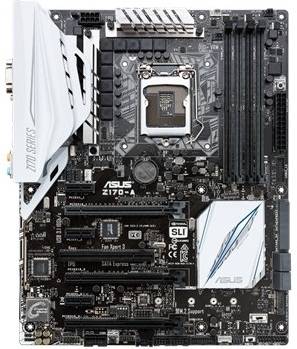

Z170-A
Supported motherboards 1. Chipset: Intel® Z170
2. Video card: slot of PCIe 3.0/2.0 x16
3. Realtek® ALC892
4. Quantity and types of slots:
2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
3 x PCIe 3.0/2.0 x1
1 x PCI
5. Network interface card: Intel® I218V, 1 x Gigabit LAN
PowerVN8-HD
PowerVN8-AHDM
5
5
Asustek

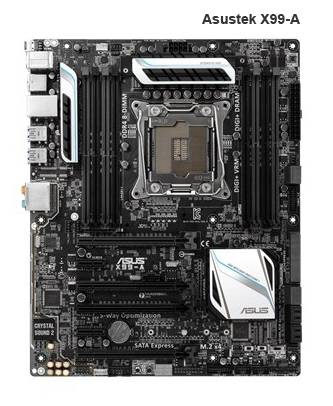

X99-A
Supported motherboards 1. Chipset: Intel® X99
2. Video card: slot of PCIe 3.0/2.0 x16
3. Realtek® ALC1150
4. Quantity and types of slots:
40-Lane CPU 3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8)
28-Lane CPU 3 x PCIe 3.0/2.0 x16 (x16, x16/x8, x16/x8/x4)
1 x PCIe 2.0 x16 (x4 mode)
2 x PCIe 2.0 x1 (x1 mode)
5. Network interface card: Intel® I218V, 1 x Gigabit LAN
PowerVN8-HD
PowerVN4-AHDM
5
5
Asustek

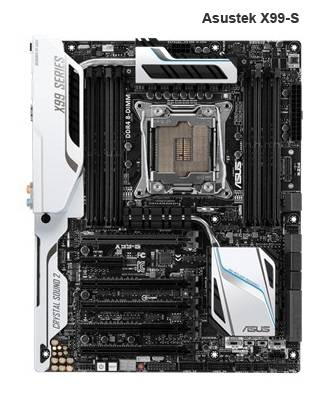

X99-S
Supported motherboards 1. Chipset: Intel® X99
2. Video card: slot of PCIe 3.0/2.0 x16
3. Realtek® ALC1150
4. Quantity and types of slots:
40-Lane CPU 5 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8, x8/x8/x16/x8, x8/x8/x8/x8/x8 mode) 1 x PCIe 2.0 x4 (max at x4 mode) * 2
28-Lane CPU 3 x PCIe 3.0/2.0 x16 (x16, x16/x8, x8/x8/x8)
2 x PCIe 2.0 x16 (x1 mode)
1 x PCIe 2.0 x4 (max at x4 mode)
5. Network interface card: Intel® I218V, 1 x Gigabit LAN
PowerVN8-HD
PowerVN4-AHDM
5
5
Asustek

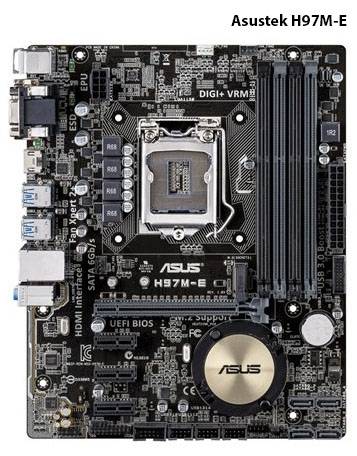

H97M-E
Supported motherboards 1. Chipset: Intel® H97
2. Video card: slot of PCIe 3.0/2.0 x16
3. Realtek® ALC 887
4. Quantity and types of slots:
1 x PCIe 3.0/2.0 x16 (x16 mode, (Gray))
3 x PCIe 2.0 x1
5. Network interface card: Realtek® 8111GR, 1 x Gigabit LAN Controller(s)
PowerVN8-HD
PowerVN4-AHDM
3
3

Asustek

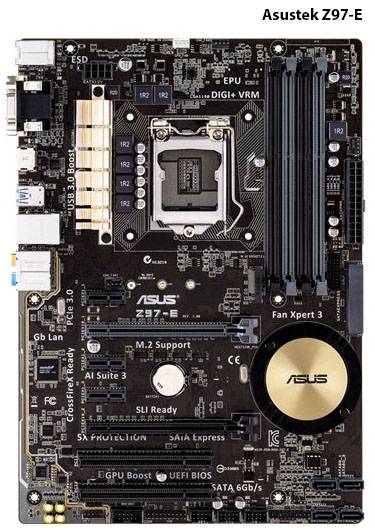

Z97-E
Supported motherboards 1. Chipset: Intel® Z97
2. Video card: slot of PCIe 3.0/2.0 x16
3. Realtek® ALC892
4. Quantity and types of slots:
2 x PCIe 3.0/2.0 x16 (Single at x16, dual at x8/x8)
3 x PCIe 2.0 x1
2 x PCI
5. Network interface card: Intel® I218V, 1 x Gigabit LAN
PowerVN8-HD
PowerVN4-AHDM
4
4

Asustek

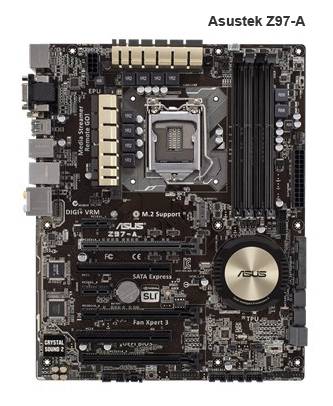

Z97-A
Supported motherboards 1. Chipset: Intel® Z97
2. Video card: slot of PCIe 3.0/2.0 x16
3. Realtek® ALC892
4. Quantity and types of slots:
2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
1 x PCIe 2.0 x16 (x2 mode)
2 x PCIe 2.0 x1
2 x PCI
5. Network interface card: Intel® I218V, 1 x Gigabit LAN
PowerVN8-HD
PowerVN4-AHDM
4
4

Asustek

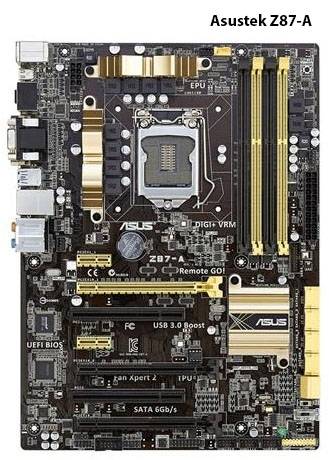

Z87-A
Supported motherboards 1. Chipset: Intel® Z87
2. Video card: slot of PCIe 3.0/2.0 x16
3. Realtek® ALC892
4. Quantity and types of slots:
2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
1 x PCIe 2.0 x16 (x2 mode)
2 x PCIe 2.0 x1
2 x PCI
5. Network interface card: Realtek® 8111G, 8111GR, 1 x Gigabit LAN
PowerVN8-HD
PowerVN4-AHDM
4
4


Dual-processor motherboards

Name


Description

Compatible capture cards

Quantity

Asustek
Asustek

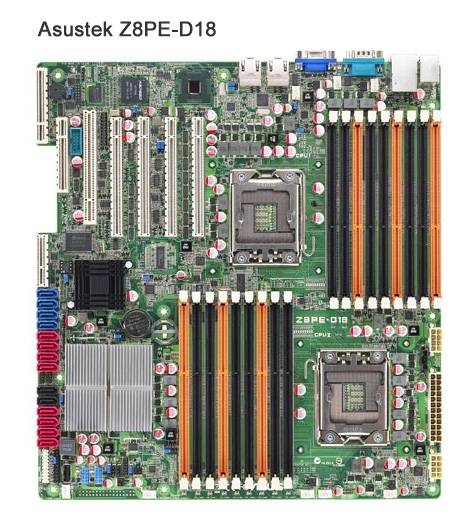

Z8PE-D18
Поддерживаемые материнские платы 1. Chipset: Intel® 5520
2. Video card: slot of PCI-E 2.0 x16
3. Sound card: No
4. Quantity and types of slots:
3 x PCI-E 2.0 x16
1 x PCI-E 2.0 x16 (8x)
1 x PCI-E 1.0 x8 (4x)
1 x PCI
5. Network interface card:
Dual Intel® Gigabit Ethernet Controller 82576EB
PowerVN4 Pro4 AGC
PowerVN8 / PowerVN8 LP
TinyVN4 Pro2
TitanVN16

1
3
1
3

SuperMicro
SuperMicro

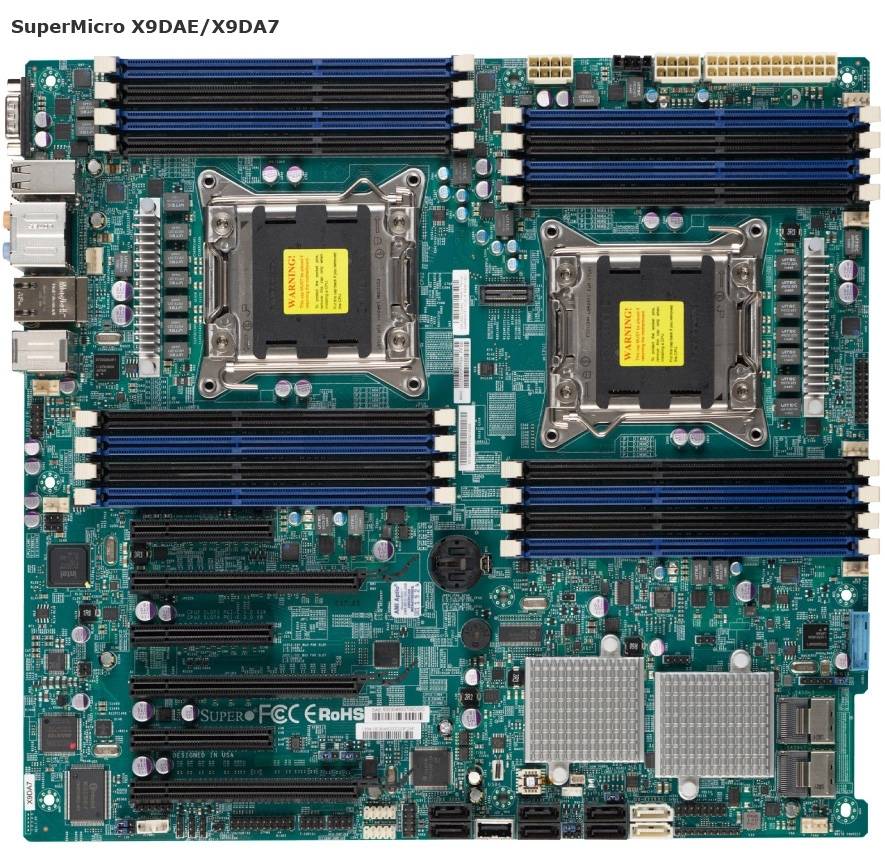

X9DAE/X9DA7
Поддерживаемые материнские платы 1. Chipset: Intel® C602
2. Video card: slot of
PCI-E 3.0 x16 (8x)
3. Sound card:
RealTek ALC889 7.1 High Definition Audio
4. Quantity and types of slots:
3 x PCI-E 3.0 x16
2 x PCI-E 3.0 x8
1 x PCI-E 3.0 x4 (в корпусе x8)
5. Network interface card:
Intel® i350 Dual Port Gigabit Ethernet
PowerVN8 / PowerVN8 LP
TitanVN16

4
3

SuperMicro

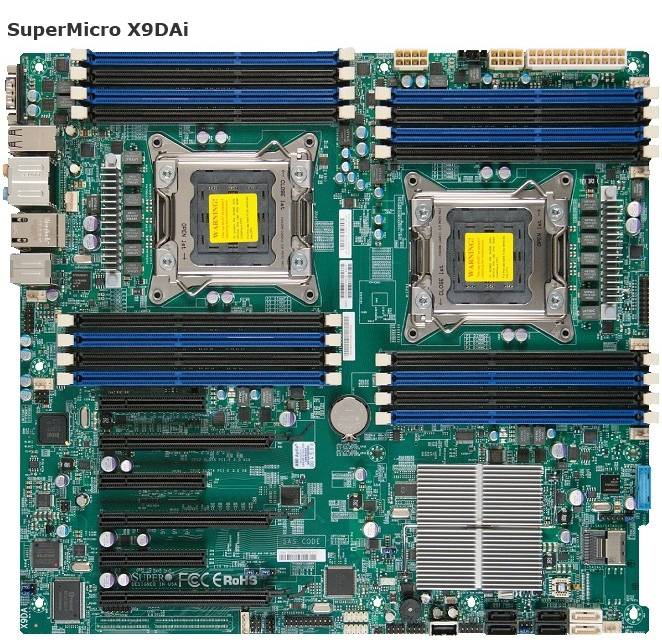

X9DAi
Поддерживаемые материнские платы 1. Chipset: Intel® C602
2. Video card:
slot of PCI-E 3.0 x16 (8x)
3. Sound card:
RealTek ALC889 7.1 High Definition Audio
4. Quantity and types of slots:
3 x PCI-E 3.0 x16
2 x PCI-E 3.0 x8
1 x PCI-E 3.0 x4 (в корпусе x8)
5. Network interface card:
Intel® i350 Dual Port Gigabit Ethernet
PowerVN8 / PowerVN8 LP
TitanVN16

4
3

SuperMicro

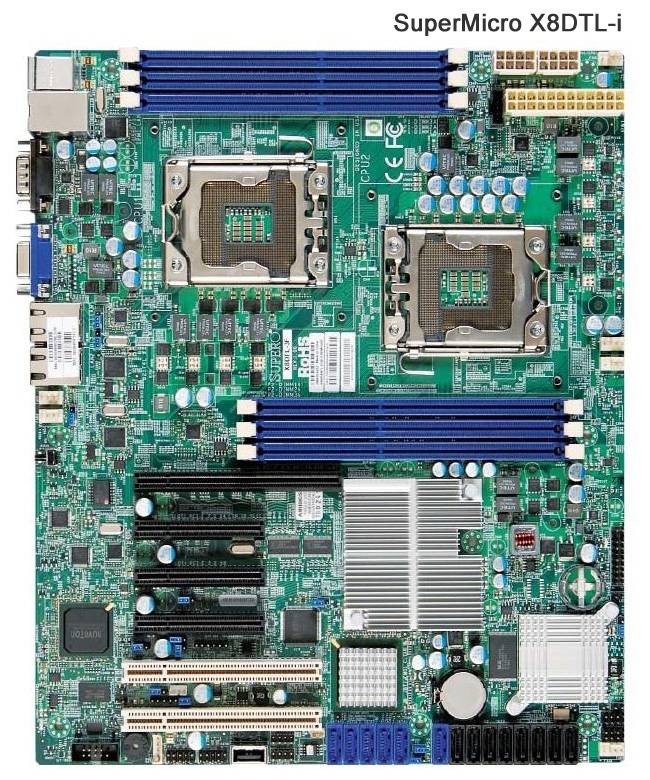

X8DTL-i
Поддерживаемые материнские платы 1. Chipset: Intel® 5500
2. Video card: slot of PCI-E 2.0 x16 (8x)
3. Sound card: No
4. Quantity and types of slots:
1 x PCI-E 2.0 x16 (8x)
1 x PCI-E 2.0 x8 (8x)
1 x PCI-E 2.0 x8 (4x)
1 x PCI-E 1.0 x8 (4x)
2 x PCI
5. Network interface card:
Dual Intel® Gigabit Ethernet Controller 82574L
PowerVN4 Pro4 AGC
PowerVN8 / PowerVN8 LP
TinyVN4 Pro2
TitanVN16

2
3
2
3

SuperMicro

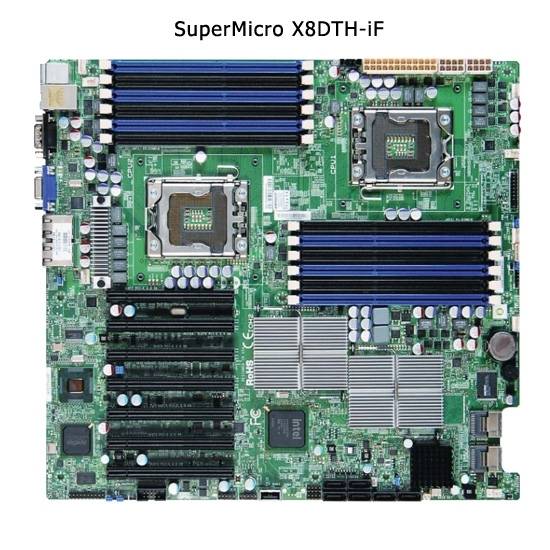

X8DTH-iF
Поддерживаемые материнские платы 1. Video card: slot of PCI-E 2.0 – x8 (Slot size x16)
2. Sound card: No
3. Quantity and types of slots:
7 x PCIe 2.0 x8 (Slot size x16)
4. Network interface card: Intel 82576 Dual Port Gigabit LAN controller
PowerVN8 / PowerVN8 LP
TitanVN16
TitanVN8 Pro

5
3
2




Video cards



Name


Description

Asustek
Asustek

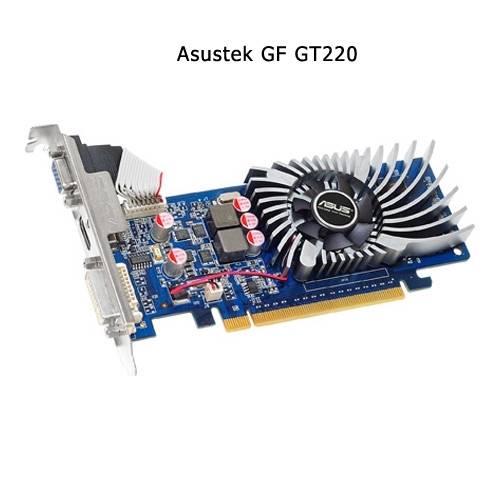

GF GT220
Supported board video cards 1. The slot for installation: PCI-E - x16
2. Number of the connected monitors: 1xDVI + 1xVGA
3. Maximum display resolution: 2048x1536
4. Memory size: from 256 MB
Asustek

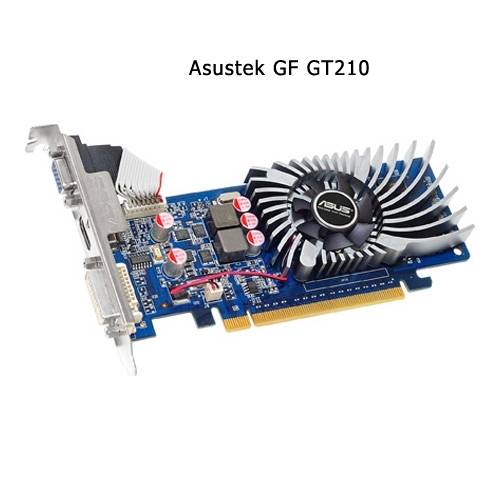

GF GT210
Supported board video cards 1. The slot for installation: PCI-E - x16
2. Number of the connected monitors: 1xDVI + 1xVGA
3. Maximum display resolution: 2048x1536
4. Memory size: from 256 MB
Asustek

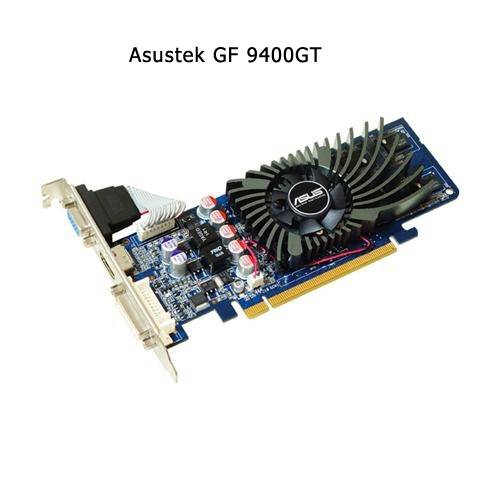

GF9400GT
Supported board video cards 1. The slot for installation: PCI-E - x16
2. Number of the connected monitors: 1xDVI + 1xVGA
3. Maximum display resolution: 2048x1536
4. Memory size: from 256 MB
Asustek

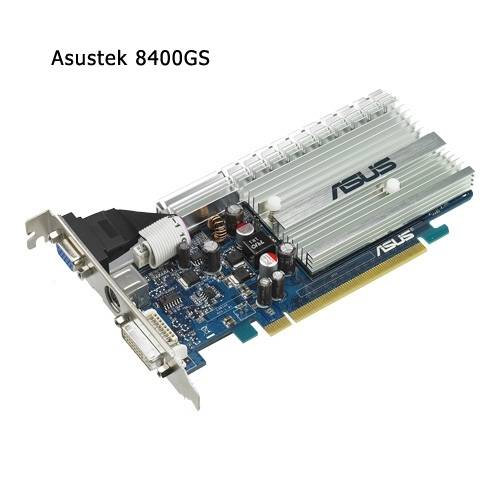

8400GS
Supported board video cards 1. The slot for installation: PCI-E - x16
2. Number of the connected monitors: 1xDVI + 1xVGA
3. Maximum display resolution: 2048x1536
4. Memory size: from 256 MB
5. TV-Out: S-video, Composite
