TREZOR hardware

Perimeter security system hardware TREZOR™


As part of the global integration and management of security systems hardware, the unified VideoNet platform supports the connection of TREZOR perimeter security system (PSS) hardware manufactured by the Russian company “Trezor Ltd”. You expand the capabilities of the perimeter security system and increase the efficiency of the entire enterprise security system - thanks to the joint work of perimeter security systems, video surveillance, FIAS, ACS. You manage the entire security system, configure hardware, set parameters for entering/exiting a perimeter-protected object, implement individual scenarios for each individual case of alarm processing by a security officer, and set automatic system responses to events.

The integration of the VideoNet system with the TREZOR system allows you to fully automate monitoring of the state of a protected object (territory, building, factory, etc.) and conveniently manage perimeter devices directly from the VideoNet system graphic plans window.

In VideoNet, you can:

  • add perimeter security devices to the system configuration and configure their parameters;
  • arrange all the perimeter security devices on the graphic plan as they are located on your object for the convenience of managing the system;
  • control perimeter devices from the window of graphical plans: enable and disable guarding of segments and perimeter sensors,
  • get information about the status of devices located along the perimeter (segment alarm, sensor alarm, hacking of PM II, LU II modules, etc.);
  • configure the VideoNet system schedule. Perform actions in response to events occurring in the INTREPID ™ II system. For example, in case of alarm by sensor the recording will start by camera or microphone and sound signal will be produced (or any other actions);
  • send notifications about occurred alarms at guarded object and analysis of events, occurred in the system, using Event Log of VideoNet system.



VideoNet PSIM platform allows you to implement an intelligent solution to protect the perimeter of the object and reduce the number of patrols and false calls. Full support of the perimeter security system in a single security system is relevant for industrial and critical facilities: airports, refineries, factories, banks, transport facilities.

VideoNet system support the following TREZOR system equipment:

Name


Description

Link to the manufacturer's website

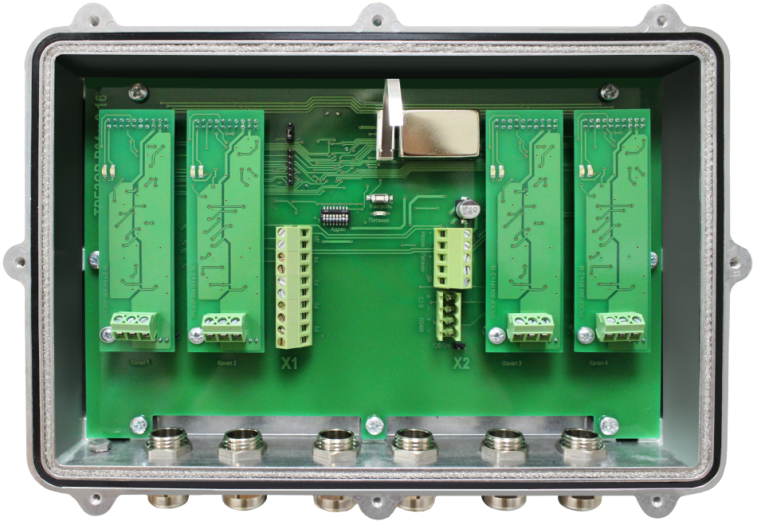

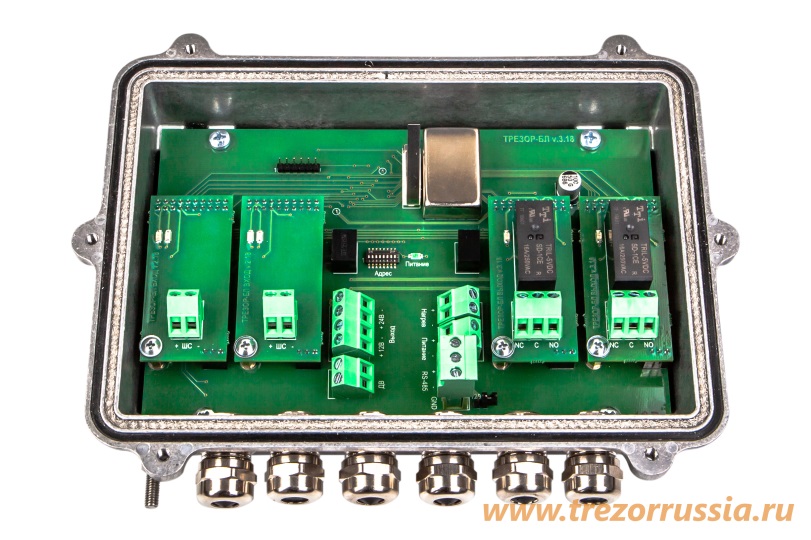

Linear block TREZOR-BL







The linear block "TREZOR-BL" is a receiving and monitoring device and is intended for receiving signals from security and other detectors, controlling executive devices and security lighting, as well as generating an alarm notification, with its subsequent transmission to the information collecting and processing system via the RS-485 interface.

Main technical characteristics:

up to 4 input and output boards;

RS-485 interface line;

outputs for power supply of third-party detectors 12 V (300 mA) and 24 V (150 mA).



Documentation

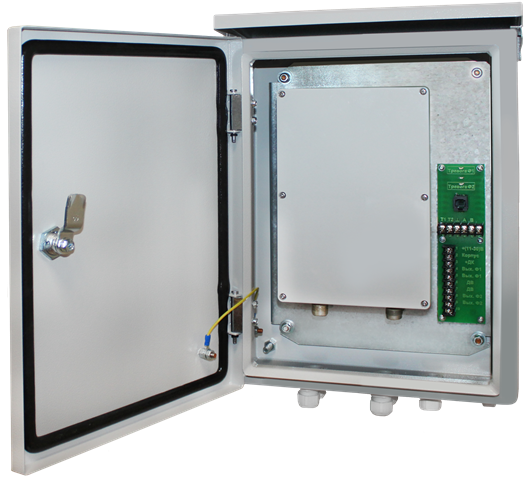

Vibration detection device TREZOR-V04









Vibration detection device TREZOR-V04 is designed to detect the penetration of an intruder through the barrier located on the perimeter of the protected object, as well as the formation of an alarm notification.

A sensitive cable attached to the barrier converts vibrations into electrical signals. In accordance with the processing algorithm, after evaluating the level of the incoming signal, the electronic unit generates an alarm notification in the form of opening the dry contacts of the relay or via the RS-485 interface.

Documentation

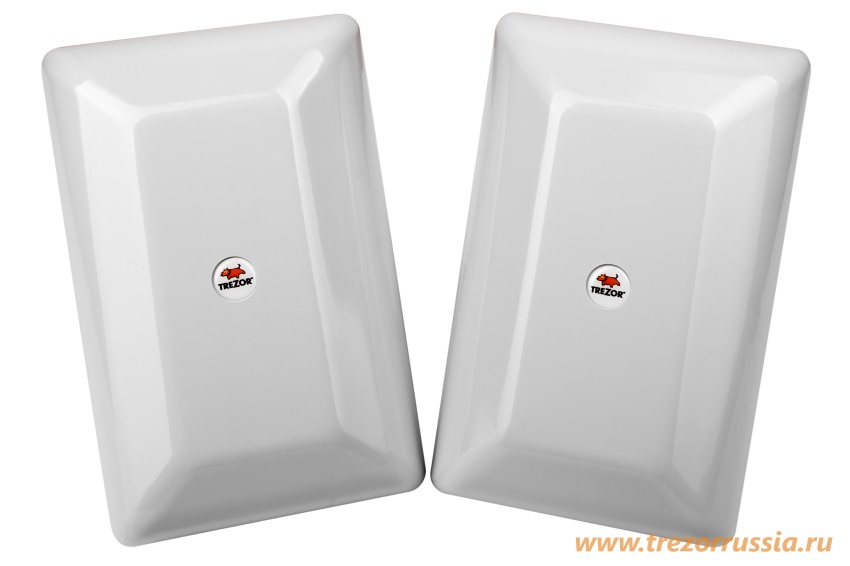

Microwave detection device TREZOR-M50





Security linear radio wave two-position detectors  "TREZOR-M" are designed to protect smooth, open areas of terrain, the formation and transmission of an alarm signal to the security panel when the intruder crosses the protected area.

Recommended length of the protected area L: TREZOR-M50 from 5 to 50 m

Detectors consist of a transmitter unit and the receiving unit.  Principle of operation of detectors is based on creating an electromagnetic field in the space between the transmitting unit and the receiving unit, which forms a three-dimensional detection zone in the form of an elongated ellipsoid of rotation and registering changes in this field in the receiver when the intruder crosses the detection zone.

Documentation

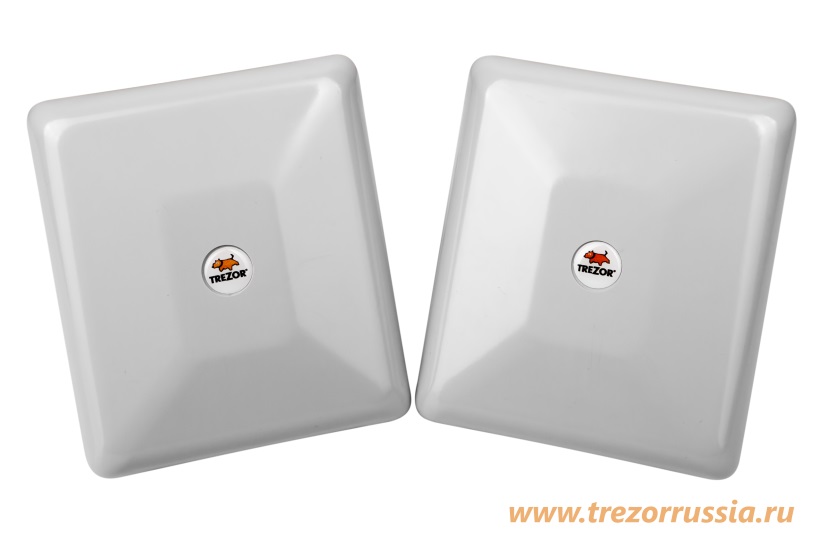

detection device TREZOR-M100

Microwave



Security linear radio wave two-position detectors  "TREZOR-M" are designed to protect smooth, open areas of terrain, the formation and transmission of an alarm signal to the security panel when the intruder crosses the protected area.

Recommended length of the protected area L: TREZOR-M100 from 10 to 100 m

Detectors consist of a transmitter unit and the receiving unit. Principle of operation of detectors is based on creating an electromagnetic field in the space between the transmitting unit and the receiving unit, which forms a three-dimensional detection zone in the form of an elongated ellipsoid of rotation and registering changes in this field in the receiver when the intruder crosses the detection zone.

Documentation



detection device TREZOR-M200

Microwave



Security linear radio wave two-position detectors  "TREZOR-M" are designed to protect smooth, open areas of terrain, the formation and transmission of an alarm signal to the security panel when the intruder crosses the protected area.

Recommended length of the protected area L:  TREZOR-M200 from 10 to 200 m

Detectors consist of a transmitter unit and the receiving unit. Principle of operation of detectors is based on creating an electromagnetic field in the space between the transmitting unit and the receiving unit, which forms a three-dimensional detection zone in the form of an elongated ellipsoid of rotation and registering changes in this field in the receiver when the intruder crosses the detection zone.

Documentation



detection device TREZOR-M300

Radio wave



Security linear radio wave two-position detectors  "TREZOR-M" are designed to protect smooth, open areas of terrain, the formation and transmission of an alarm signal to the security panel when the intruder crosses the protected area.

Recommended length of the protected area L:  TREZOR-M300 from 10 to 300 m

Detectors consist of a transmitter unit and the receiving unit. Principle of operation of detectors is based on creating an electromagnetic field in the space between the transmitting unit and the receiving unit, which forms a three-dimensional detection zone in the form of an elongated ellipsoid of rotation and registering changes in this field in the receiver when the intruder crosses the detection zone.

Documentation

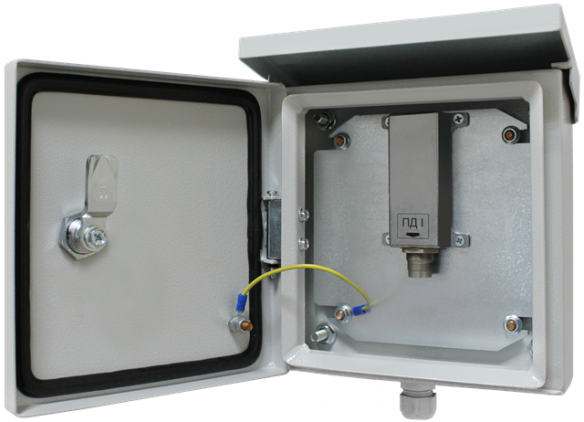

detection device TREZOR-R01

Radio wave







The radio wave detection device "TREZOR-R" is intended for signaling control of open areas of terrain, as well as the perimeter of the object. Detects an intruder who overcomes the barrier by crossing it, destroying it, or digging it up.

Allows you to create invisible guard lines in the absence of a barrier.

The detection zone is formed by two sensitive cables that act as antennas (transmitting and receiving). Cables are laid in the ground or mounted on a barrier. The transmitter located in the transmitting unit generates a high-frequency signal that is radiated by the transmitting cable, creating an electromagnetic field distribution around it.

Documentation



Microwave

detection device TREZOR-R02





The radio wave detection device "TREZOR-R" is intended for signaling control of open areas of terrain, as well as the perimeter of the object. Detects an intruder who overcomes the barrier by crossing it, destroying it, or digging it up.

Two channels with independent setting and separate alarm (for TREZOR-R02);

the length of the detection zone is up to 250 m (2 channels of 125 m for TREZOR-R02), width from 2 to 5 m, height up to 1 m above ground level (when laying both cables in the ground, depending on the distance between them);

Allows you to create invisible guard lines in the absence of a barrier.

The detection zone is formed by two sensitive cables that act as antennas (transmitting and receiving). Cables are laid in the ground or mounted on a barrier. The transmitter located in the transmitting unit generates a high-frequency signal that is radiated by the transmitting cable, creating an electromagnetic field distribution around it.

Documentation





For the convenience of managing the system, you can arrange all the perimeter security devices on the graphic plan as they are located on your object.
