MB-RIO 4/16 USB

MB-RIO 4/16 USB rev. 3.1 signal input/output module




The main application of MB-RIO signal input / output modules is the hardware integration of the VideoNet video surveillance system with any third-party subsystems that conducts the reception and the transmission of discrete signals.

MB-RIO 4/16 USB rev. 3.1 is designed to work in the VideoNet 9 system.



Use



MB-RIO 4/16 - USB Rev. 3.1 is used for galvanic separation of discrete signals from sensors of protection; has 4 relay outputs to control external actuators and are equipped with an additional USB input to connect any USB device (e.g. dongle HASP or Flash drive). The module MB-RIO connects directly to the USB interface of the motherboard of the PC.

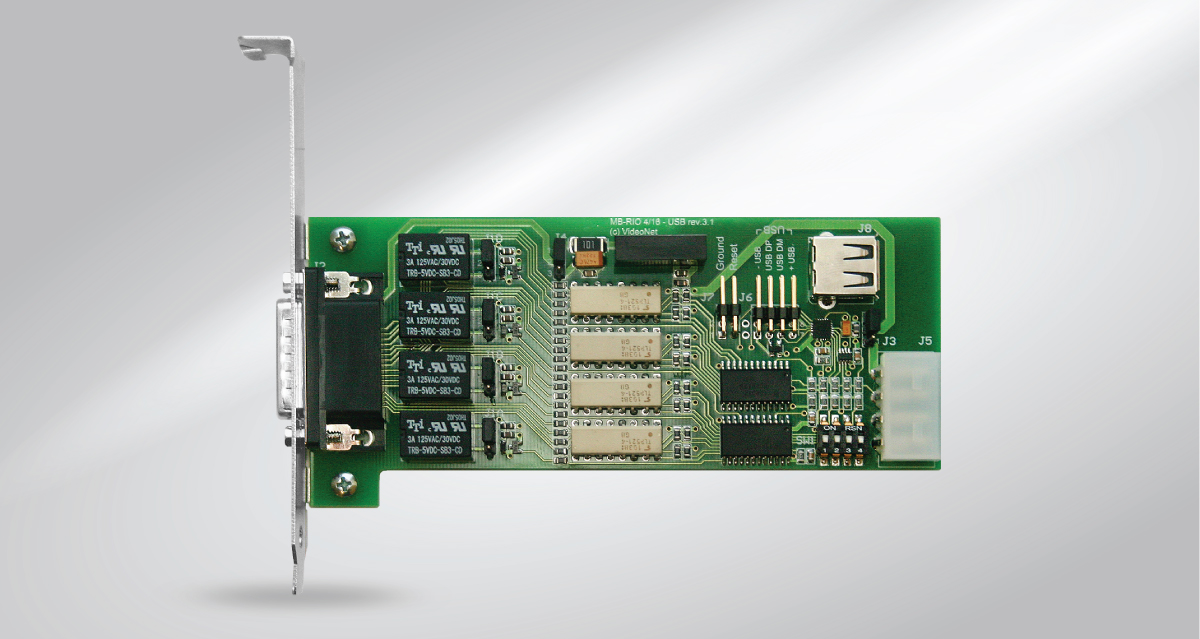

Appearance

Видеобластер PowerVN8-HD

Specifications



Specifications

MB-RIO 4/16 - USB Rev. 3.1

Number of security entrances

16

Relay outputs

4

Maximum breakdown voltage isolation input/output

1000VDC

Type of the external sensors

TTL(5V), CMOS(5-12V), the "dry contact"

Number of USB inputs

1

Connector type to connect to the computer

USB

Work on x64 operating system

Yes

Overall dimensions

140x80x20 mm

Module weight

110 g

Ambient temperature

+5... +50°C

Relative humidity conditions for normal working (at +20°C) no more than

90 %



Download the documentation for your device
