IP audioserver

Sound registration module


To record conversations in VideoNet PSIM, a proprietary development is implemented - the network call recording modules PowerVN4-AudioIP and PowerVN8-AudioIP, to which 4 to 8 external microphones or intercoms can be connected. The module has an Ethernet interface for connecting to a computer network.

The registration module provides high-quality recording of negotiations without compression (PCM standard) and is used for a wide range of tasks: improving the efficiency of staff and customer service, investigating incidents, minimizing risks of leakage of confidential information and identifying corruption.

IP audioserver PowerVN8-AudioIP and PowerVN4-AudioIP is supported in VideoNet software starting from version SP3.

Purpose

PowerVN8-AudioIP and PowerVN4-AudioIP IP audioserver is an electronic module that operates under the VideoNet ® computer system and is designed for receiving audio signal from connected microphones, digitizing it and processing it in the VideoNet ® environment.

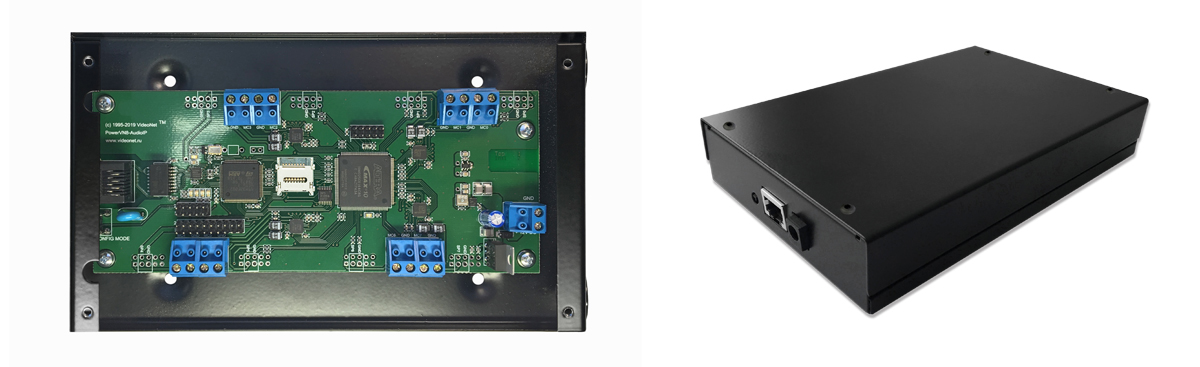

Visual appearance







Technical parameters

Technical parameters

PowerVN8-AudioIP / PowerVN4-AudioIP

Power supply voltage, V

12

Current consumption in standby mode no more than, mA

80

Ambient temperature, °C

from +2 to +40

Relative humidity (at +20°C) no more than, %

90

Overall dimensions, mm

180х115х35

Weight, g

150

Audio information compression algorithm

Without compression, PCM

Sample rate, kHz

16

Depth of sample rate, bit

16

Dynamic range, dB

85

Coefficient of nonlinear distortion, dB

-81

Connector type for connecting to a computer (network)

8P8C

Type of microphone connector

Terminal block

Type of power connector

Terminal block

Maximum number of connected microphones, pcs.

8/4
